Understanding Conductor Materials and Coatings Used in Cables
Understanding Conductor Materials and Coatings Used in Cables
Cable engineering has come a long way since the days of copper wires and rubber insulation. Nowadays, conductors are made of a variety of materials, including aluminum, copper, silver, nickel-plated steel, and many others. Each has its own set of advantages and disadvantages that must be considered when making a design decision. In addition to the conductor material itself, cable manufacturers use various coatings for insulation purposes. Let’s take a closer look at some of the most common types.
Conductors

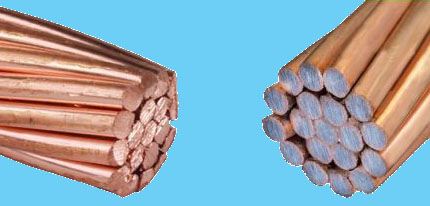

The commonly used metal conductor materials include copper, aluminum, silver, nickel-plated steel and tinned copper. Copper is most often used due to its high electrical conductivity and low cost. Aluminum is also widely used because it is lightweight and corrosion resistant. It also offers better thermal performance than copper or silver however it does have lower electrical conductivity which can make it less efficient as a conductor material in certain applications. Silver offers superior electrical conductivity but is much more expensive than other options. Nickel-plated steel provides increased mechanical strength which can be beneficial in certain applications while tinned copper offers improved corrosion resistance over plain copper wire or cable.
Coatings
Polyvinyl chloride (PVC) is one of the most common insulation materials used in cables due to its flexibility, low cost, fire retardant properties and ability to withstand moisture and chemicals. Ethylene Propylene Rubber (EPR) is another popular choice that provides higher dielectric strength than PVC as well as better resistance against ozone deterioration and temperature extremes. Other insulation materials include fluorinated ethylene propylene (FEP), cross-linked polyethylene (XLPE), silicone rubber (SR), chlorinated polyethylene (CPE) and kynar® PVDF among others each with their own unique set of properties that may make them suitable for specific applications or environments where other traditional insulation materials may not be suitable for use.
The type of conductor material chosen for an application depends on the required performance requirements such as current carrying capacity or mechanical strength while the choice of insulation coating should be based on factors such as operating temperature range or exposure to chemicals or moisture present in an environment which can have an effect on the longevity of the cable assembly over time if not properly specified during design phase. It’s important to factor all these considerations into account when selecting cables for your specific application so you can ensure you are getting the most out of your investment in terms of both performance and life expectancy of your cable assemblies. With careful consideration given to both conductor material selection as well as insulating coating type you will be able to get optimal performance with maximum longevity from your cable assemblies regardless of what kind of environment they are being used in!
