Buy Belden 9729, spool lengths of 100 ft, 500 ft, 1000 ft at AudioVideoElectric.com

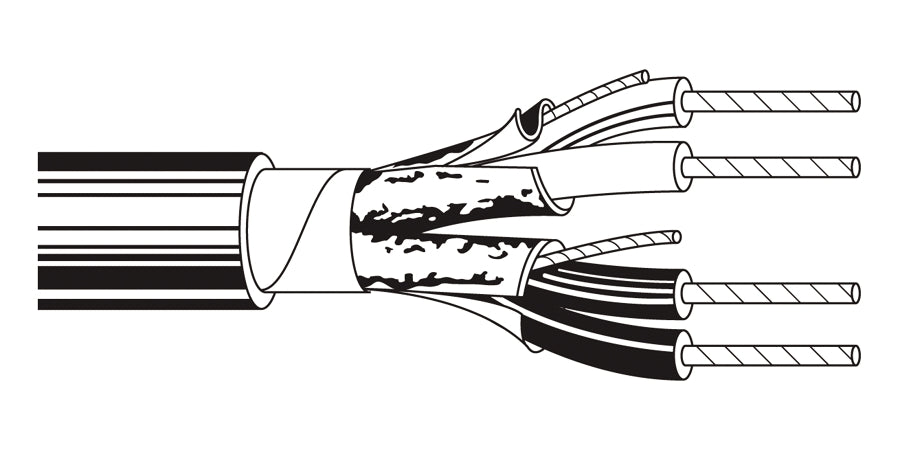

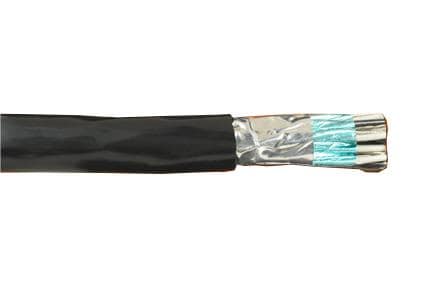

The Belden 9729 cable is a multi-conductor cable designed for various applications, including RS-232/422 computer communications, low voltage analog signals, digital audio, and panel wiring.  We also offer a Belden 9729 equivalent with Free Shipping for 20% less than the Belden product.

• Spool lengths available: 100 ft, 500ft and 1000 ft

• Conductors: 2 pairs of 24 AWG stranded tinned copper conductors.

• Insulation: Datalene® insulation, which offers low dielectric constant and high-speed, low-distortion data handling.

• Shielding: Individually Beldfoil® shielded (100% coverage) with a 24 AWG stranded tinned copper drain wire.

• Jacket: PVC (Polyvinyl Chloride) jacket.

• Electrical Characteristics: Characteristic impedance of 100 ohms, nominal conductor DC resistance of 28.8 ohms/1000ft, and a maximum current of 2.1 amps per conductor at 25°C.

• Mechanical Characteristics: Operating temperature range of -20°C to +80°C, and a minimum bend radius of 2.7 inches (69 mm).

• Compliance: Meets various standards including UL 1685 FT4 Loading, IEC 60332-1-2 CPR Compliance, and EU RoHS.
