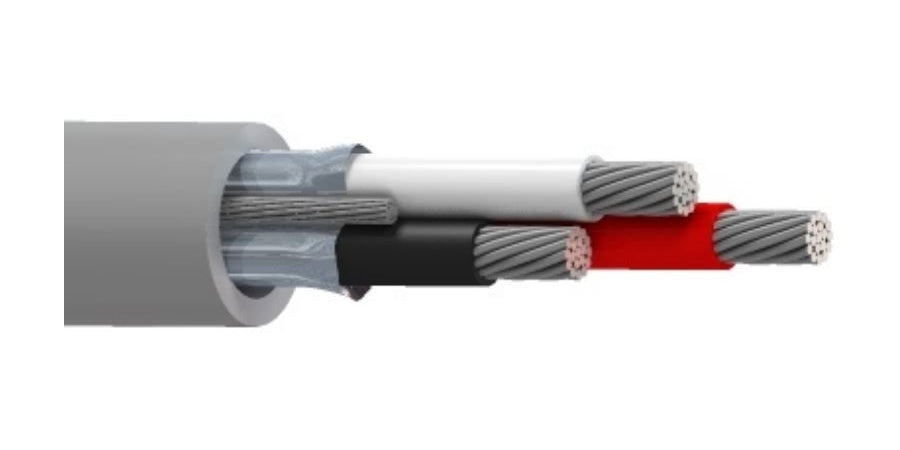

BELDEN # 8772 060U500 - Multi-Conductor Cable, 3 Conductors, 20 AWG, 7x28 Strands, Tinned Copper, PE Insulation, PVC Jacket - Price Per 500 Feet - WAVE-AudioVideoElectric

BELDEN # 8772 060U500 - Multi-Conductor Cable, 3 Conductors, 20 AWG, 7x28 Strands, Tinned Copper, PE Insulation, PVC Jacket - Price Per 500 Feet

by Belden
$901.37
SKU # 8772 060U500
Product Specifications
Manufacturer: Belden Wire and Cable
Conductor/Pair Count: 3 CONDUCTORS
AWG Gauge Size: 20 AWG (AMERICAN WIRE GAUGE)
Conductor Type (Solid/Stranded): STRANDED CONDUCTOR
Conductor Material: Tinned Copper
Jacket Material
Jacket Color
UL Compliance UL LISTED ART 800
ROHS Compliance
Shielded YES
Shield Type/Construction FOIL SHIELDED - ALUM/MYLAR
Dielectric Material
Fire/Flammability Rating GENERAL PURPOSE
Temp Rating/Max Temp
Voltage Rating:
Unit Weight in kg:
Unit Weight in Lbs:
Coax Type
Mil Spec


8772 Data Sheet
Save money with exact equivalents from other high quality manufacturers. Email us or chat below for details

Manufacturer Part #
Alpha Wire 2413C
General Cable C2525A
Southwire/Coleman 672003
West Penn Wire 302
Manhattan M13233
Quabbin Yes, Email us or chat below for details
Daburn 2961/3
