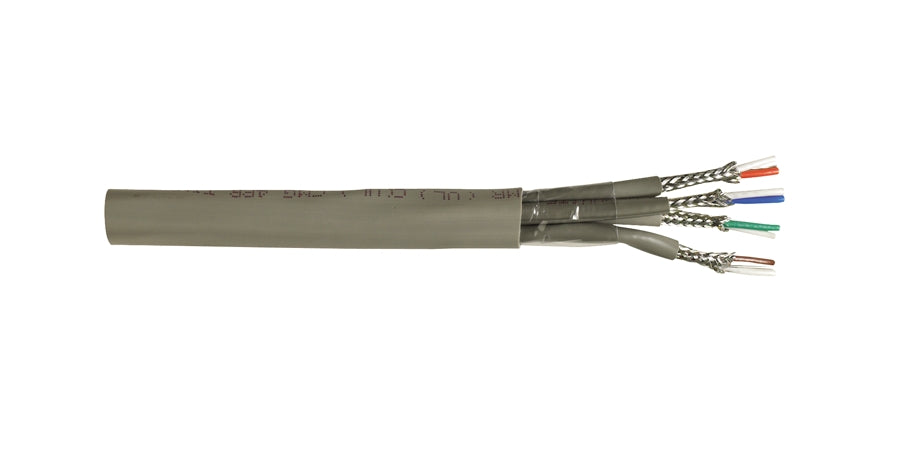

GENERAL CABLE 2117037 - 22-1-P Solid Tin Plated Copper SRPVC-PE-PVC& FRPVC Jacket IND Braid Shield with DW TYPE CM White-Blue, 150 FT MINIMUM.

$211.06
SKU 2117037

GENERAL CABLE 2117037 - 22-1/P Solid Tin Plated Copper SRPVC-PE/PVC& FRPVC Jacket IND Braid Shield with DW TYPE CM White/Blue



Applications:,T1/DS1,Suitable for use in terminating high- frequency lines to carrier equipment in central offices
Conductors: 22 AWG solid tinned annealed copper,Insulation: High-density polyethylene with a layer of flame-retardant PVC overall; Primary insulation, nominal O.D. = 0.051"; Secondary insulation, nominal O.D. = 0.072",Drain Wire: 22 AWG solid tinned annealed copper,Shield: 34 AWG tinned copper braid 90% coverage,Pair Jacket: Flame-retardant PVC jacket over each braid shielded twisted pair,Color Code: Pair jackets are color-coded by use of jacket printing,Marking or printing will correspond with the colors of the insulated pairs (e.g., white/blue printed on the pair jacket indicates the insulation colors of the pairs enclosed),Jacket: Flame-retardant PVC; Sequential footage markings
Minimum 150 FEET.
