GENERAL CABLE 7131940 - GenSPEED 6000 Enhanced Cat 6 Cable, CMP, U-UTP, Blue

$776.71
SKU 7131940

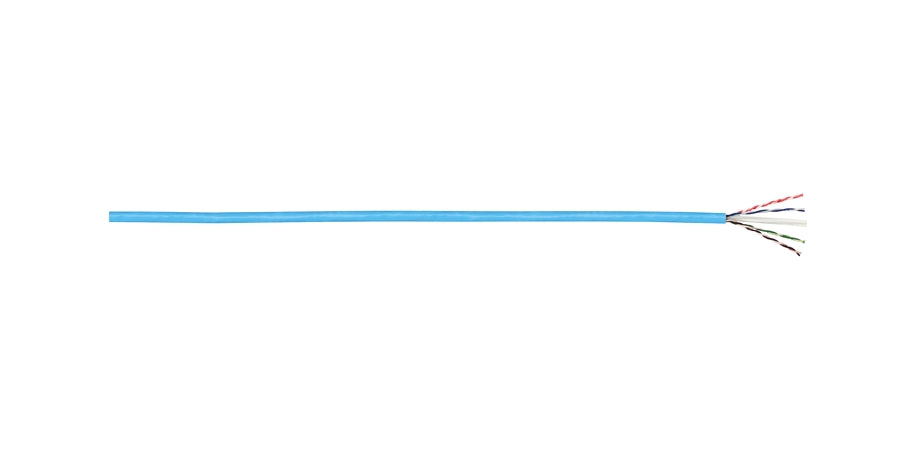

GENERAL CABLE 7131940 - GenSPEED 6000 Enhanced Cat 6 Cable, CMP, U/UTP, Blue



Features: And Benefits ,Innovative cross-web design allowing for maximum pair separation, increasing key electrical performance parameters,Performance guaranteed to 350 MHz,TRU-Mark print legend contains footage markings from 1000’ to 0’,Third-party verified for guaranteed performance,Made in U.S.A.,Applications:,IEEE 802.3: 1000 BASE-T (Gigabit Ethernet), 100 BASE-TX, 10 BASE-T,ANSI/TIA/EIA 854: 1000 BASE-TX,155 Mp/s, 1.2 Gb/s ATM,ANSI X3.263: 100 Mb/s,IEEE 802.3af DTE Power (PoE),IEEE 802.3at for PoE Plus ,Digital Video,Broadband and Baseband Analog Video
Conductors: 23 AWG solid bare annealed copper,Insulation: Non-Plenum: Polyolefin; Plenum: Fluoropolymer,Color Code: Pair 1: Blue-White/Blue; Pair 2: Orange-White/Orange; Pair 3: Green-White/Green; Pair 4: Brown-White/Brown,Separator: Cross-web,Rip Cord: Applied longitudinally under jacket,Jacket: Non-Plenum: Flame-Retardant PVC; Plenum: Low-Smoke, Flame-Retardant PVC
Minimum 1000 FEET - Available in 1000 FEET increments
