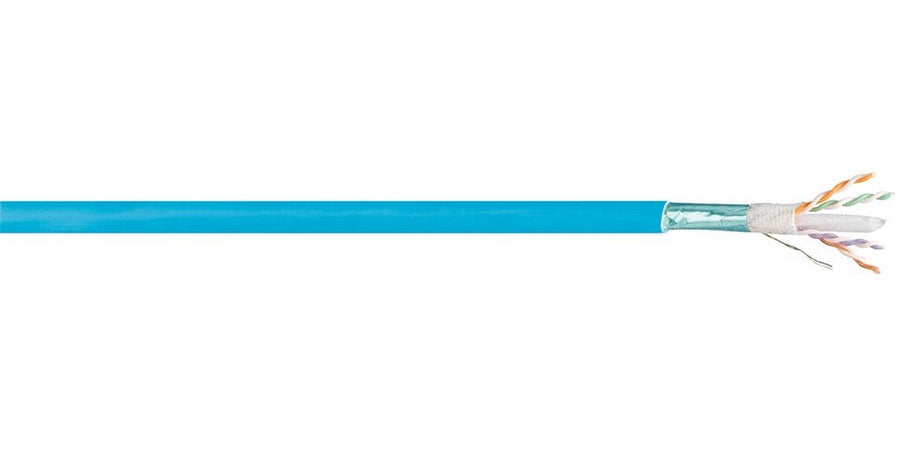

GENERAL CABLE 7133786 - GenSPEED 10,000 Cat 6A Cable, CMR, U-FTP, Blue

$8,631.58
SKU 7133786

GENERAL CABLE 7133786 - GenSPEED 10,000 Cat 6A Cable, CMR, U/FTP, Blue



Features: And Benefits ,Shielded design allowing for maximum pair separation, increasing key electrical performance parameters,Individual pair shielding for EMI protection,Typical positive PSACR beyond 500 MHz for increased available bandwidth,TRU-Mark print legend contains footage markings from 1000’ to 0’,Made in U.S.A.,Applications:,IEEE 802.3an: 10G BASE-T (10 Gigabit Ethernet) ,1000 BASE-TX (Gigabit Ethernet),2.4/1.2 Gb/s ATM ,IEEE 802.3af for PoE ,IEEE 802.3at for PoE Plus
Conductors: 23 AWG solid bare annealed copper,Insulation: Non-Plenum: Foamed HDPE; Plenum: Foamed Fluoropolymer,Color Code: Pair 1: Blue-White; Pair 2: Orange-White; Pair 3: Green-White; Pair 4: Brown-White,Shield: Each pair is individually shielded with an aluminum foil 24 AWG drain wire,Jacket: Non-Plenum: Flame-Retardant PVC; Plenum: Low-Smoke, Flame-Retardant PVC
Minimum 10000 FEET - Available in 10000 FEET increments
